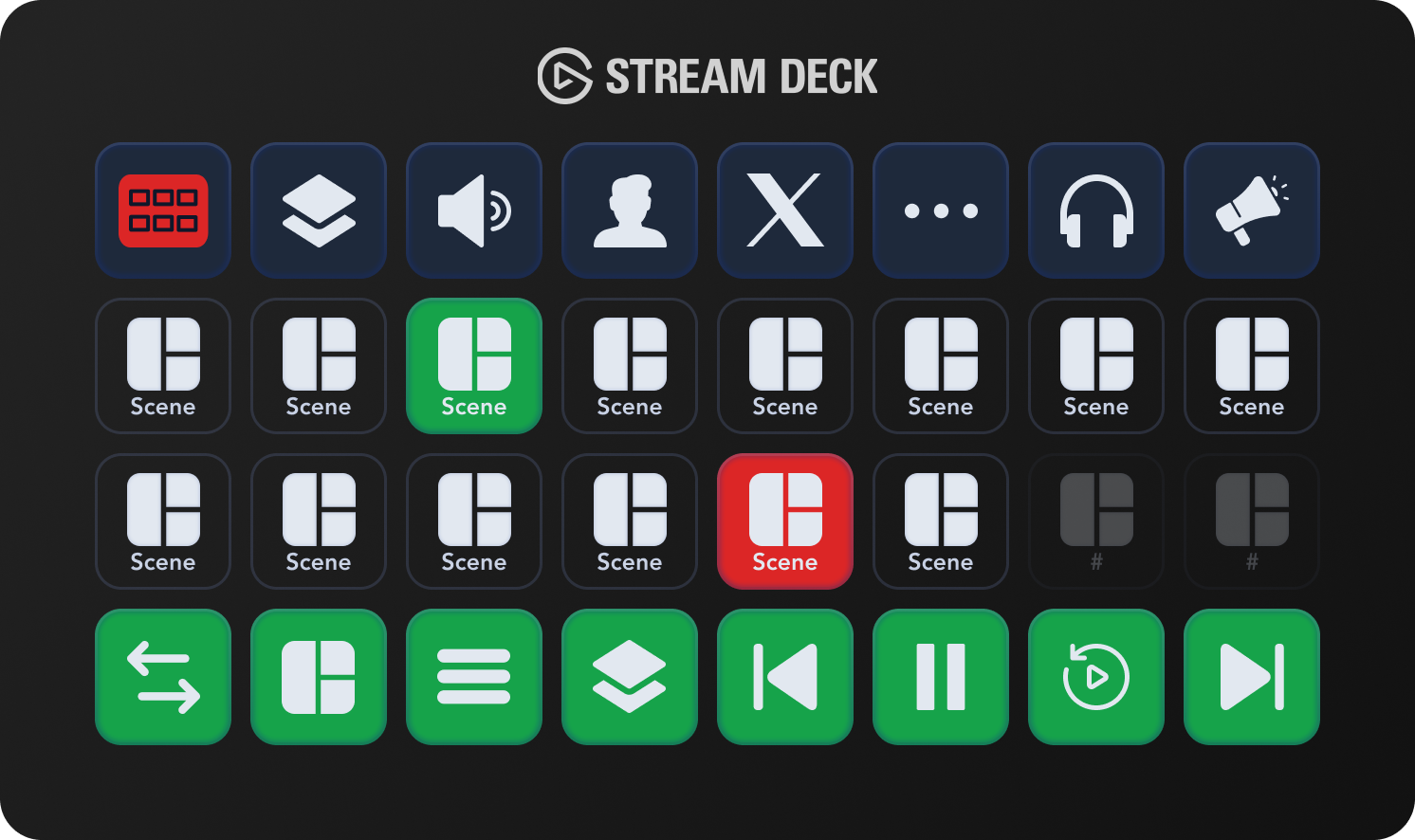

Select scenes

You can link up to 16 scenes from the event and select them into preview. The scene in the program cannot be deselected. By default the first 16 scenes from the switcher layout are selected and the name scene name is added automatically.

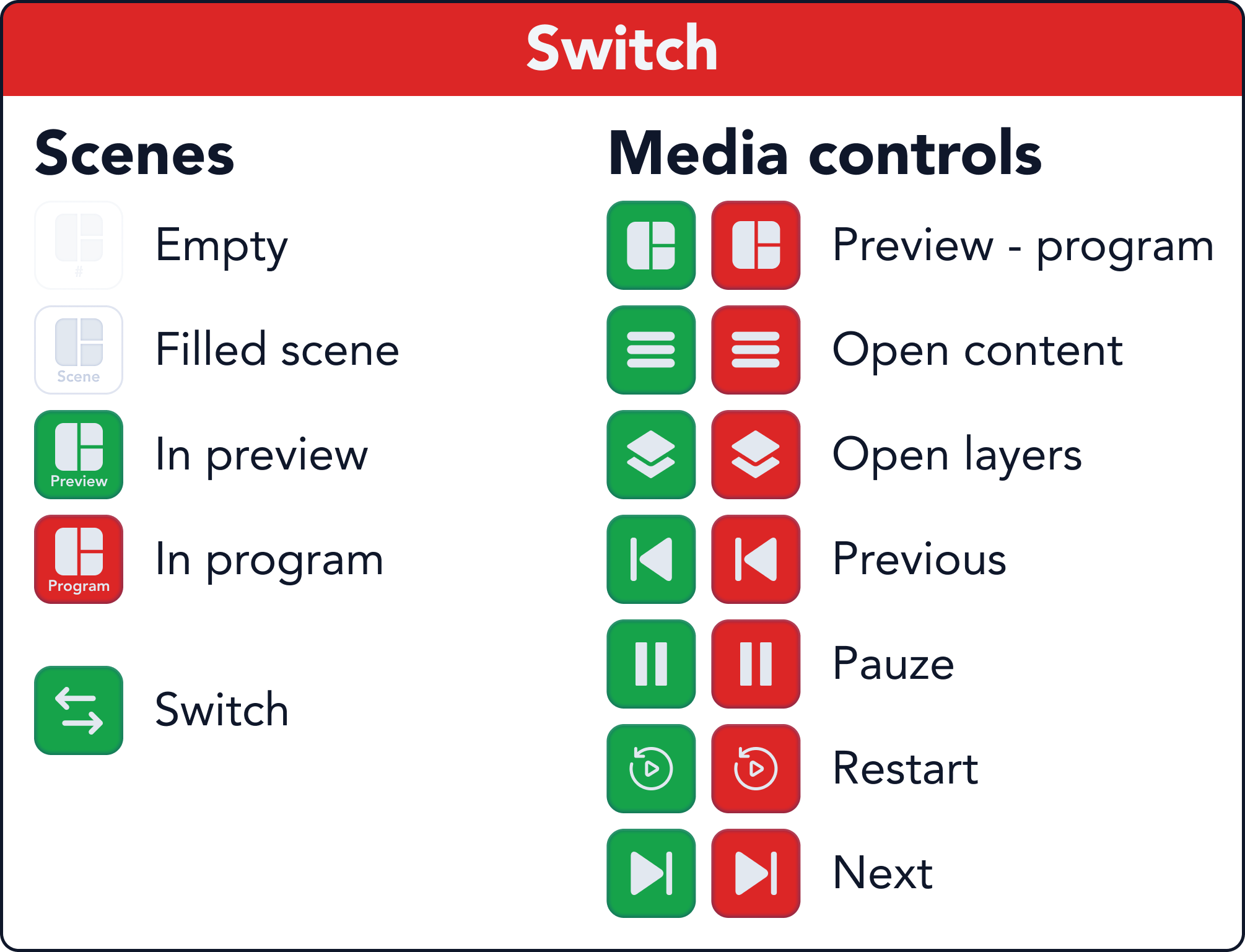

The button states

  • Empty: No scene is allocated to it
  • Loaded: A scene is added but not used in preview or program
  • Preview (green) : the scene is used in preview
  • Program (red) : the scene is used in program



How to select different scenes?

  • Open the streamdeck manager
  • Go to the Scene profile
  • Click on the scene button you want to change the source from the switcher
  • At the bottom, change the scene input

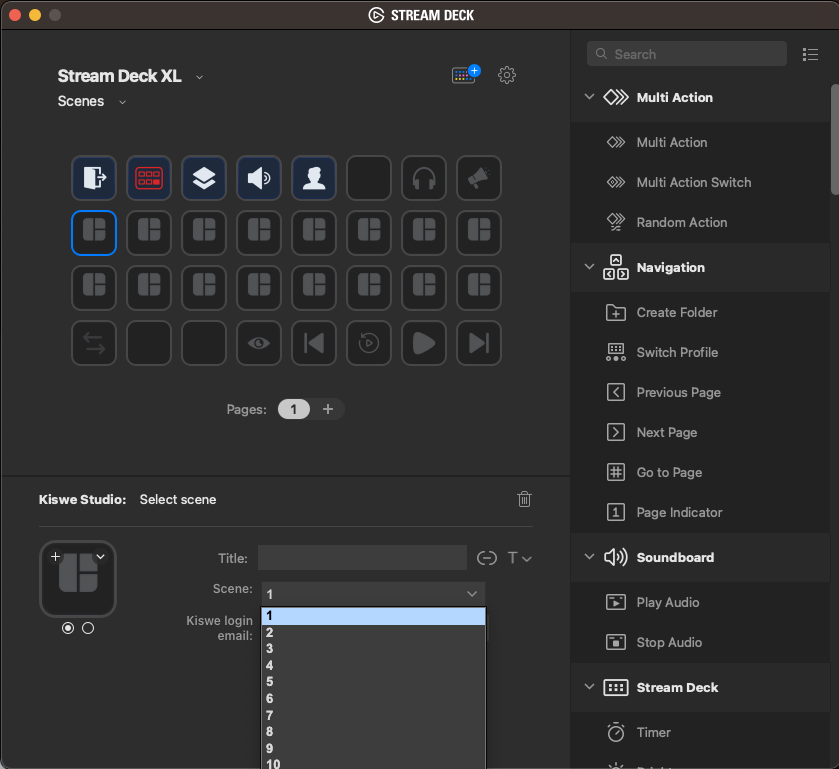

Screenshot



Switch scenes

When you hit the switch button, the scene gets cut and the preview becomes program and vice versa.



Media buttons

Frame 531.png

With these buttons you control the clips and graphics of the scenes in preview and program

    • Change to preview or program mode:  clicking the eye icon, the colors of the media buttons will change accordingly.
      • Green = preview
      • Red = program
    • Previous: show the previous clip or graphic (ghosted when at the first content)
    • Pauze: only available for clips
    • Restart: only available for clips, will restart the clip.
      • ! Note that in the case that clips are chained we will restart the chain, not the clip.
      • Next: show the next clip or graphic (ghosted when at the first content
    • Content popup: Opens the content popup showing all content in the scene
    • Layer Popup: Opens the content popup showing all layers in the scene
