Needs
- 5 different layouts containing 2 till 6 boxes
- Layout 1 - 1 station (athlete) + 1 guests
- Layout ... - 1 station + ... guests
- Layout 6 - 1 station + 5 guests
- same as last olympics
- Only colors need to be updated
- 20 stadiums / stations
- Size 1920*1080.
Layouts elements
-
People
- Station stream
- 1 - 5 guests
- Items
- Athlete name
- Country
- Sport icon
- Background
Create a layout
Create the first layout from scratch and for the others use the first layout as start.

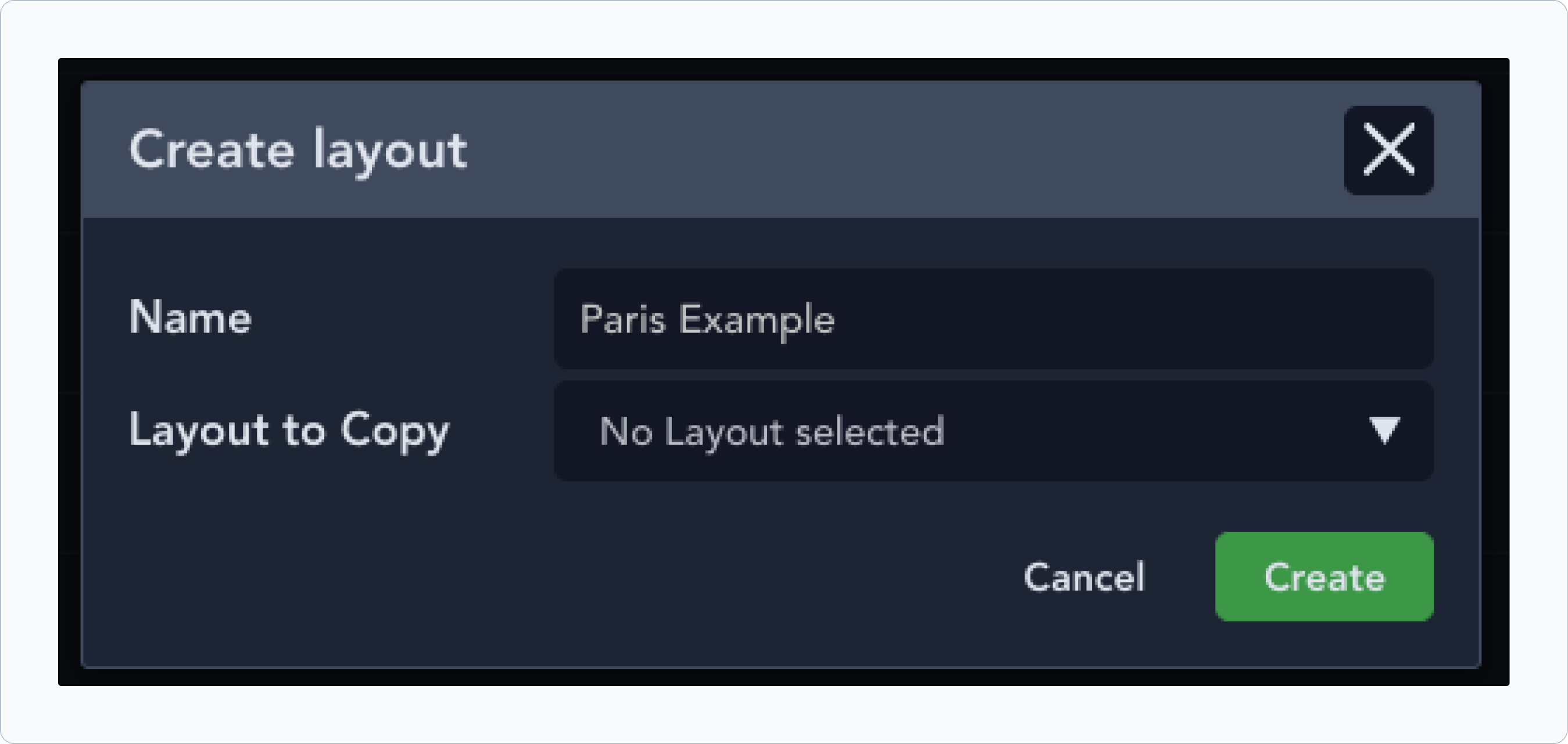

1. Create a new layout
-

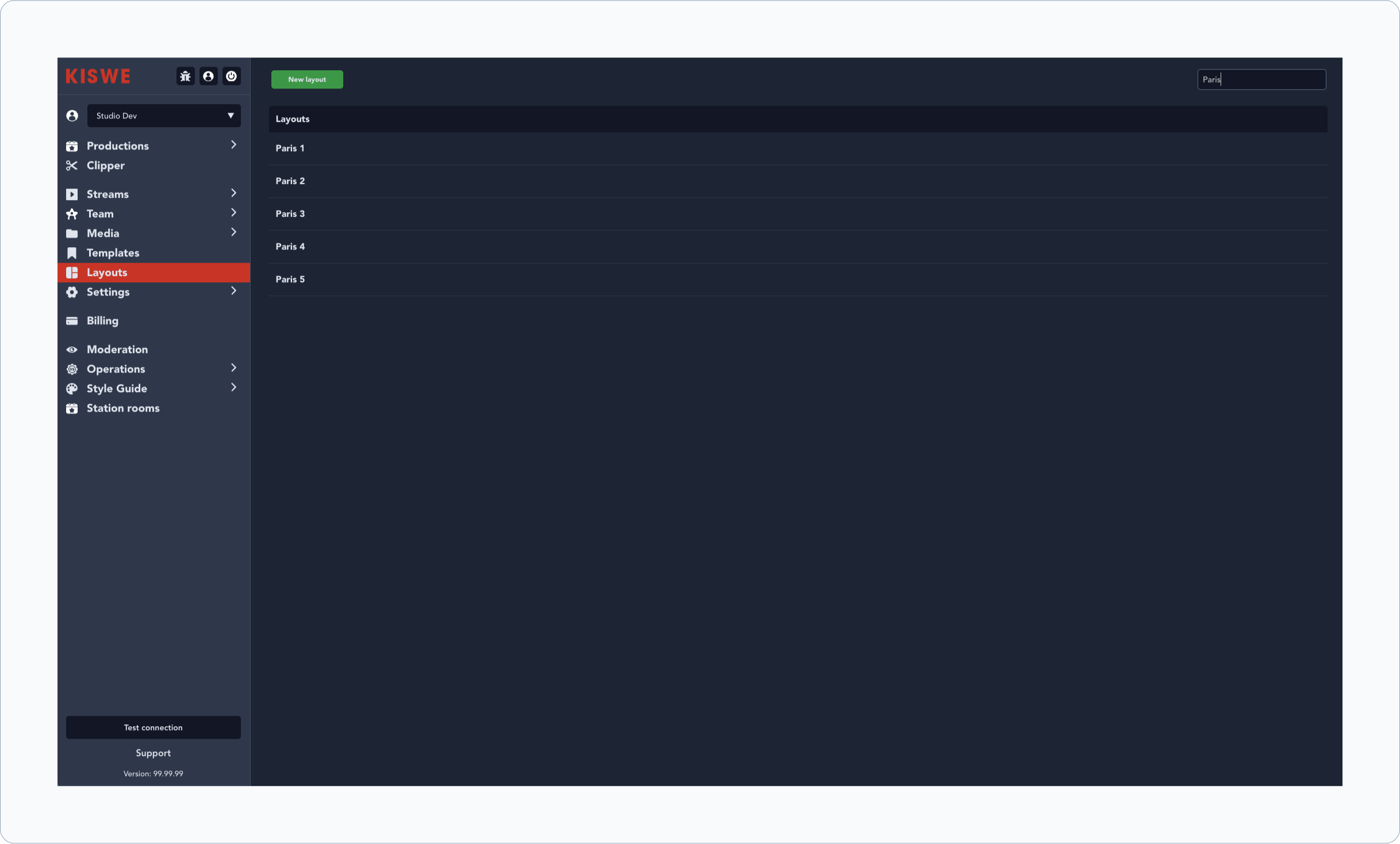

- Go to the layout editor
- Create a new layout
- Copy the first created layout (For layout 2-5)
2. Setup the layout

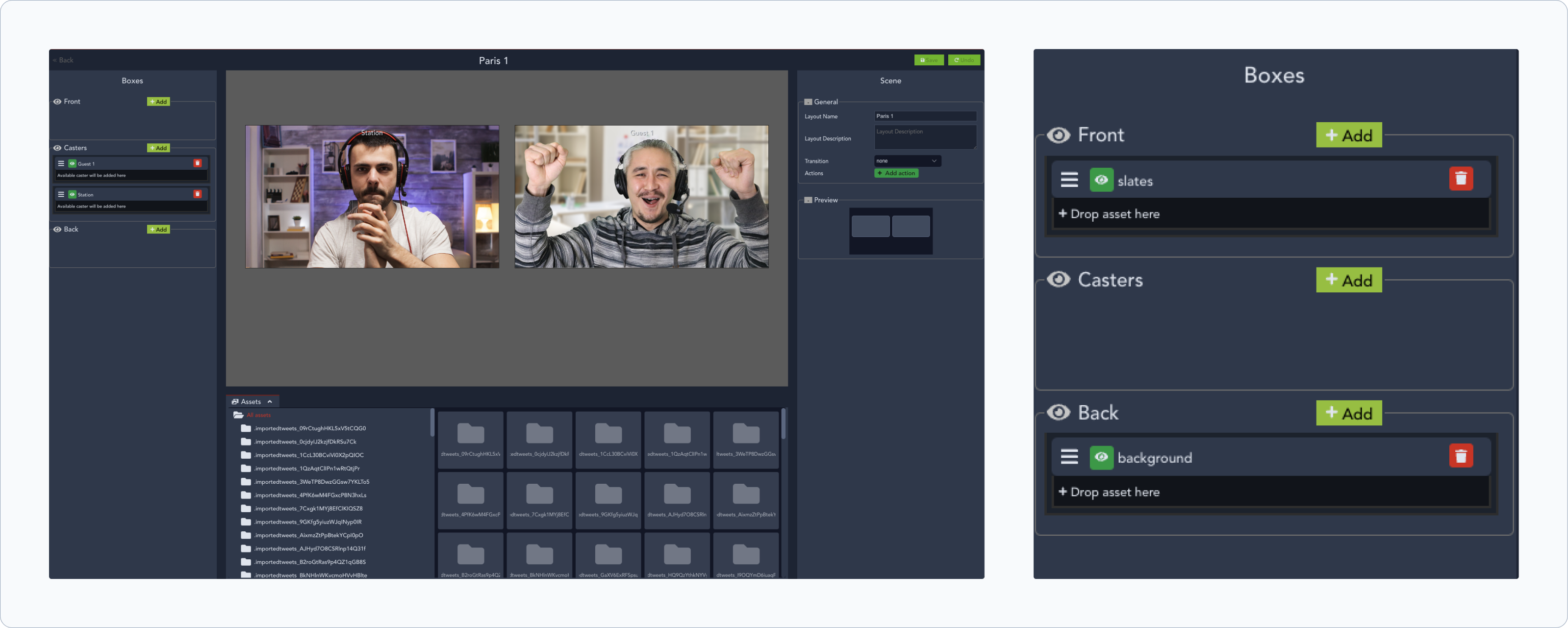

- Remove the 2 boxes
-
- Select the slate & background by pressing on the item in the left column
- Press the delete button

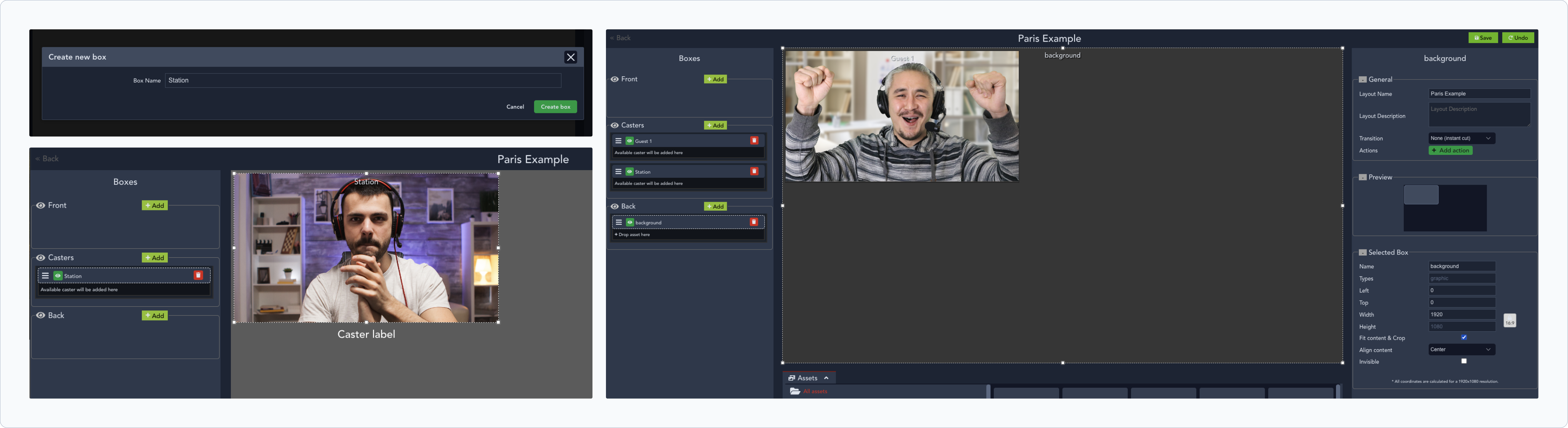

- Add a Station
-
- Add a station: in the CASTER section
- Give it a name (Station)
- Type: graphic
- Top & Left = depends
- Size= depends
- 16:9 = turn on
- Fit & crop content: center
- Label: Turn off the label (show label) to show the athletes name

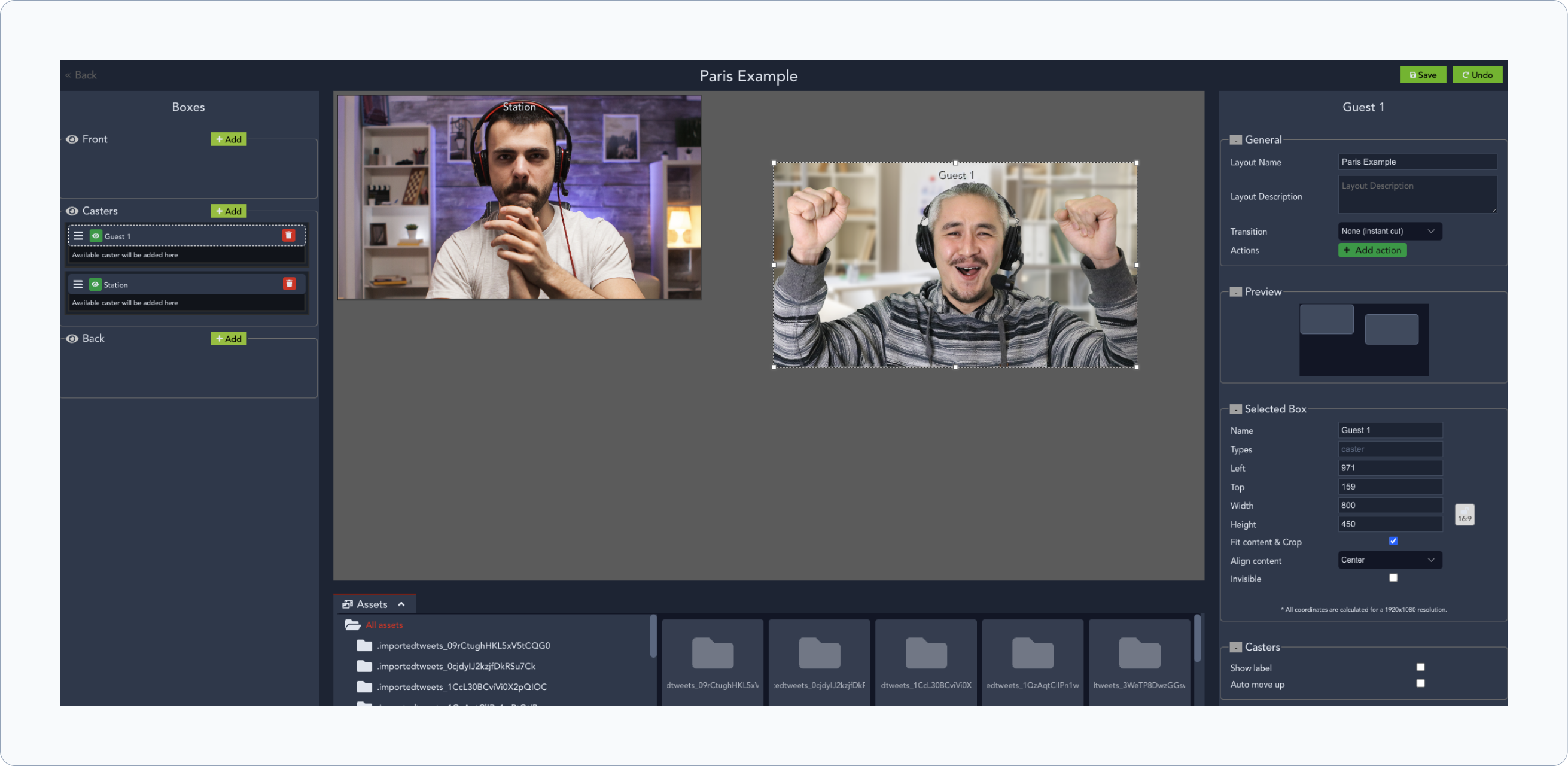

- Add guest boxes
-
- Add caster boxes
- Give them a name (Guest 1 - 5)
- Type: graphic
- Top & Left = depends
- Size= depends
- 16:9 = turn on
- Fit & crop content: center
- Label: Turn off the label (show label) to show the athletes name
- Add background
-
- Add background box in BACK
- Type: graphic
- Top & Left = 0
- Size: 1920 - 1080
- 16:9 size
- Fit & crop content: center
- No label
-
Add the name, Country & Icon
- We froresee to have 3 placeholderB
- Based on the selection in the wizard of the fan room these placeholders are filled in
- Event name = Name
- Country = Country
- Sport = Icon
- Save the layout > top right
- Exit the editor > top left (back button)
