Station Switchers

Switch panel

Here you switch between the slates & the rooms with the cut button. The press on the cut button will also be used to record the Fan room and create a clip automatically that you can find in the Clipper section on the dashboard.

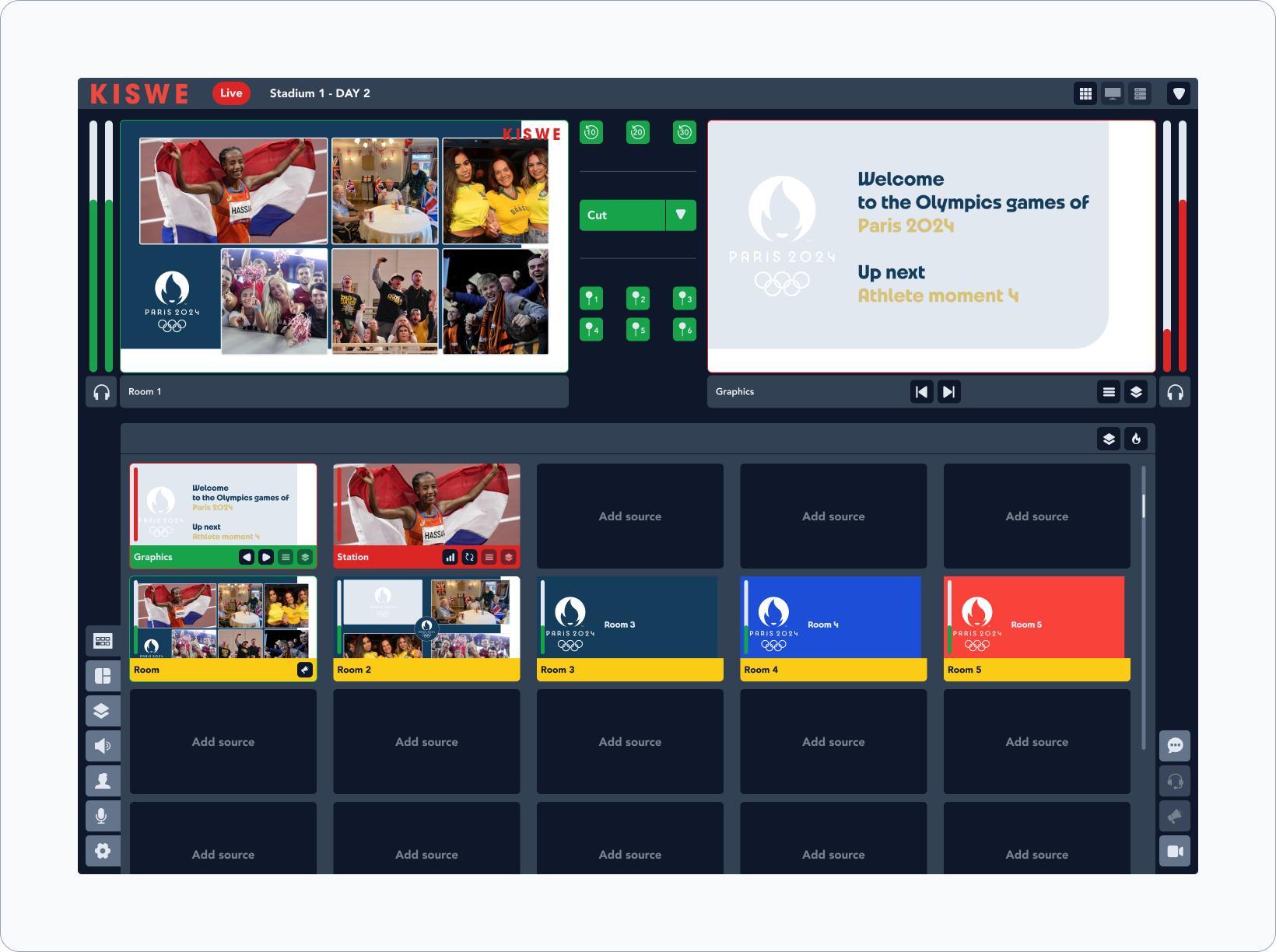

Switch panel.png

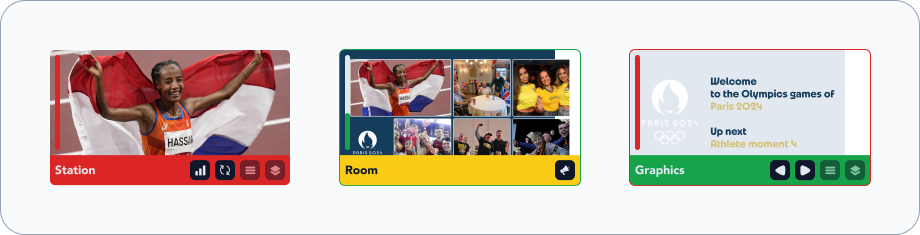

Elements of the station room and the options


  • Station: the direct preview of the station
    • Graph: diagnostics of the station stream
    • Change: use the backup stream
  • Fan rooms: the rooms needed for that day events
    • Intercom: talk to the room directly to let them now they will be up soon
  • Slates: a graphic box with slates
    • Arrows: show previous / next slate

Scene panel

You can edit the fan rooms from the station room.

  • Delete guests
  • Use individual talkback to a guest
  • Add a stinger to the fan room

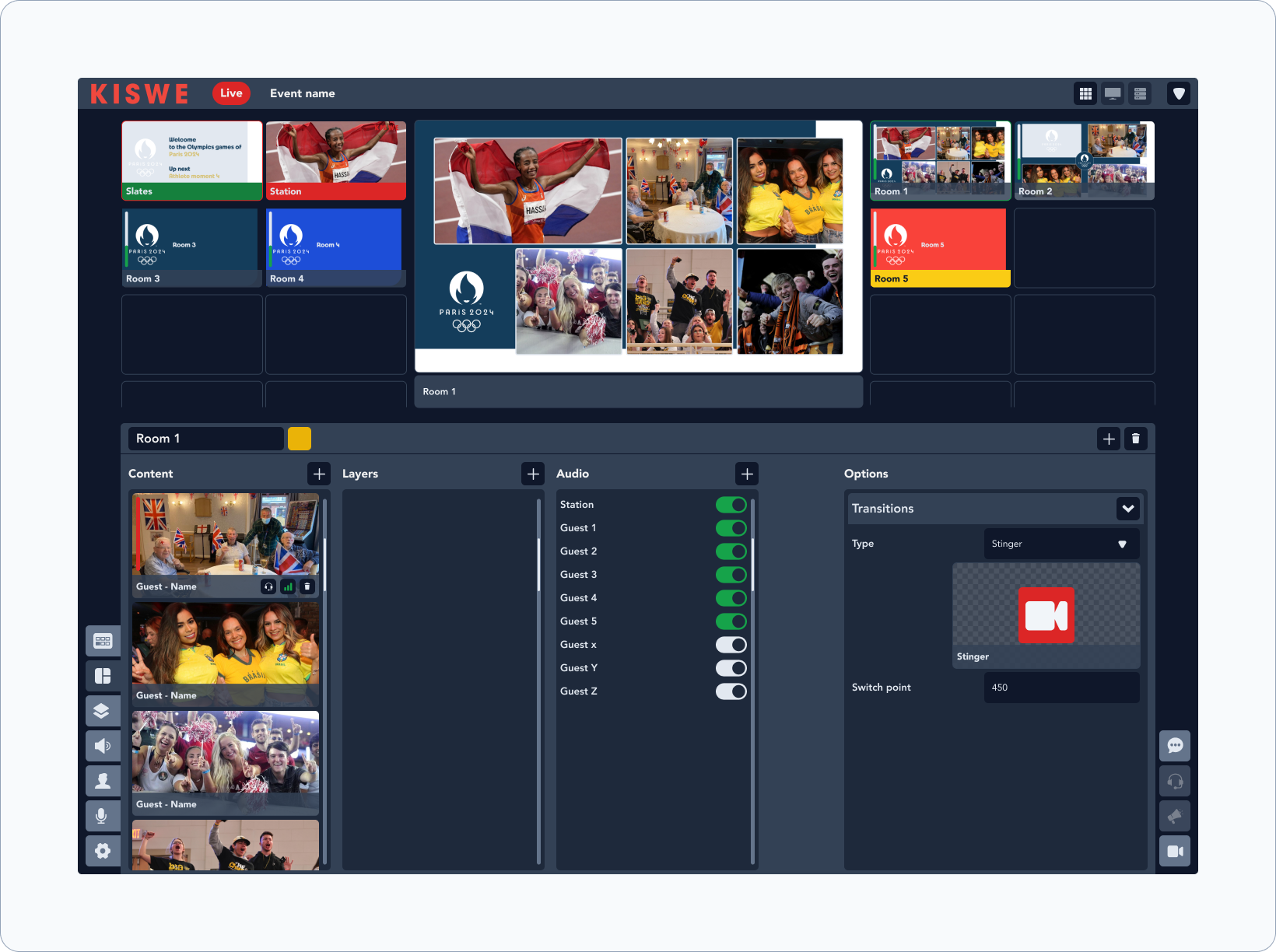

Scene panel.png



Key panel

Here you can add global layers, keys, for logo's or a slate for technical issues

Audio panel

Master the audio volumes of the rooms

Crew panel

Master the audio volumes of all the crew members

Commentator panel

Not needed

Output panel

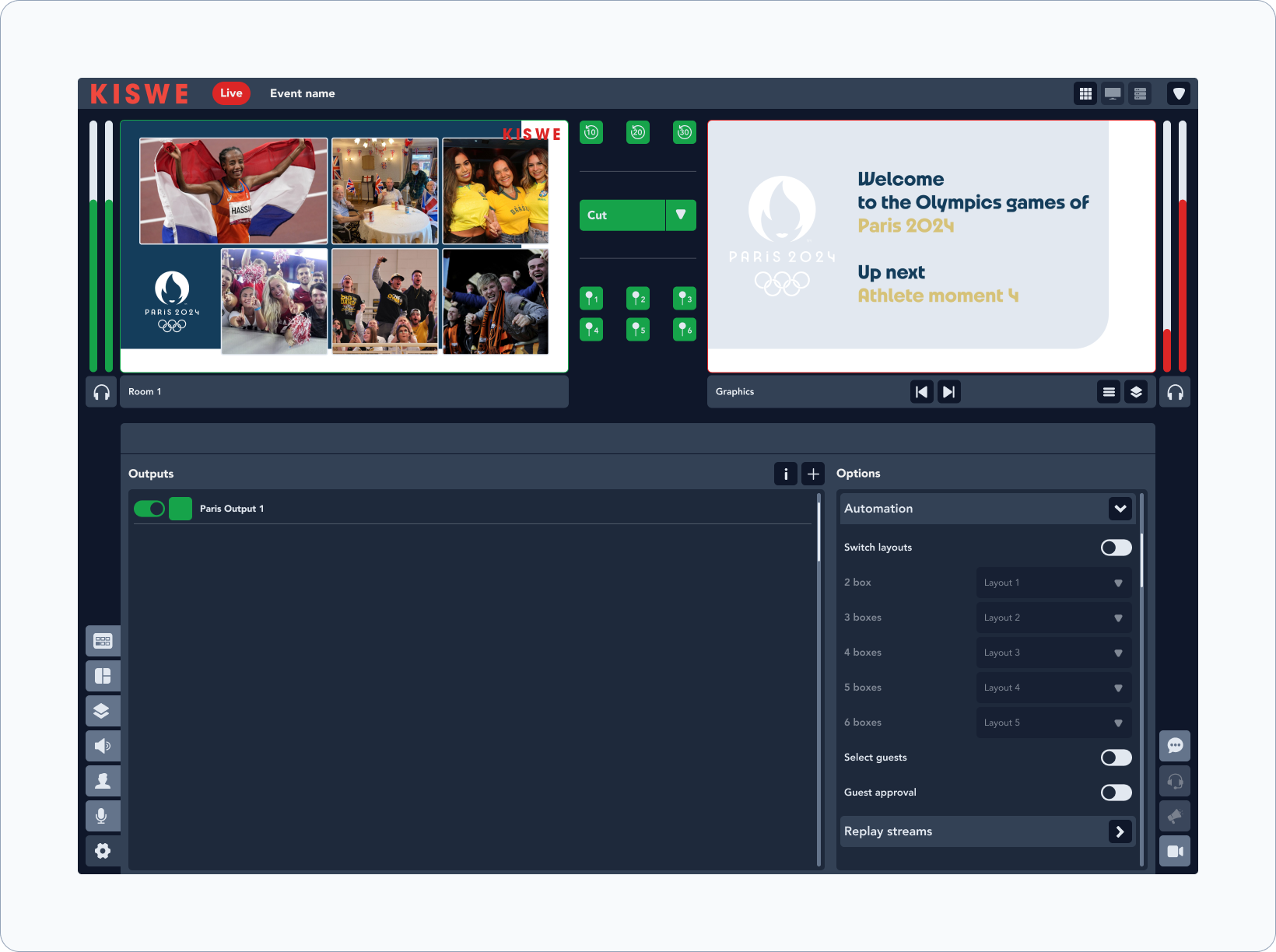

Settings panel.png

  • Select the output stream to send the program to
  • Confirm that the automation settings are turned off.





Communication

Before you can use the talkback and the intercom you need to start streaming and connect your devices.

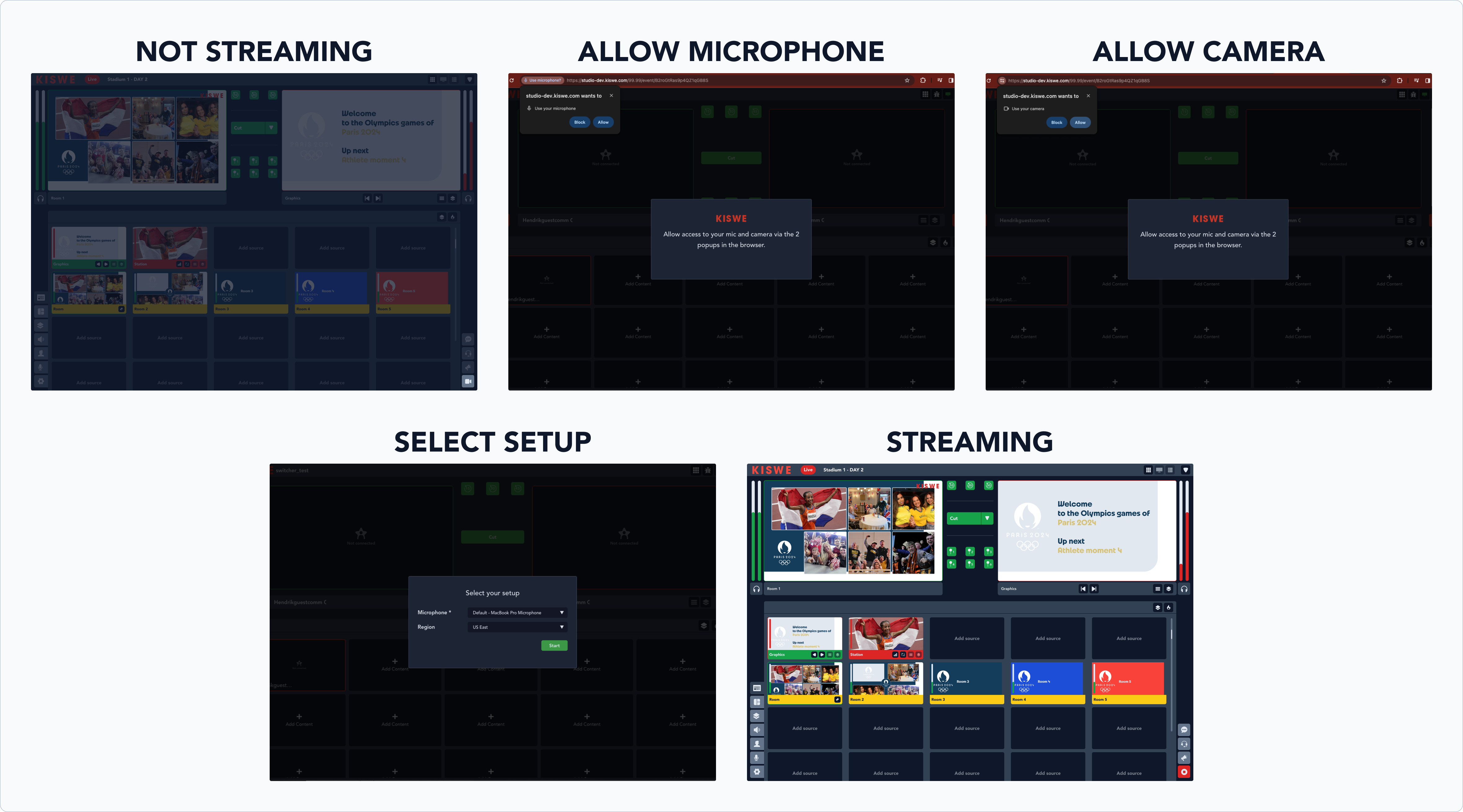

Activate Talkback.png

  • Press the camera icon at the bottom right
  • Allow access to Kiswe to use your audio and video
  • Select the devices you want to use
  • And select the region you are located (need to be as close as possible for low latency & high quality)
  • Press Start and the streaming starts & you can use the communication tools. See that the button turned red. Pressing the button again wil ask you to disable the streaming again.
