Switch panel
Switching between layouts is done automatically and the guests are also selected automatically when the settings are set well in the settings panel. The hotswitch mode is turned on too. This fan room functions automatically.

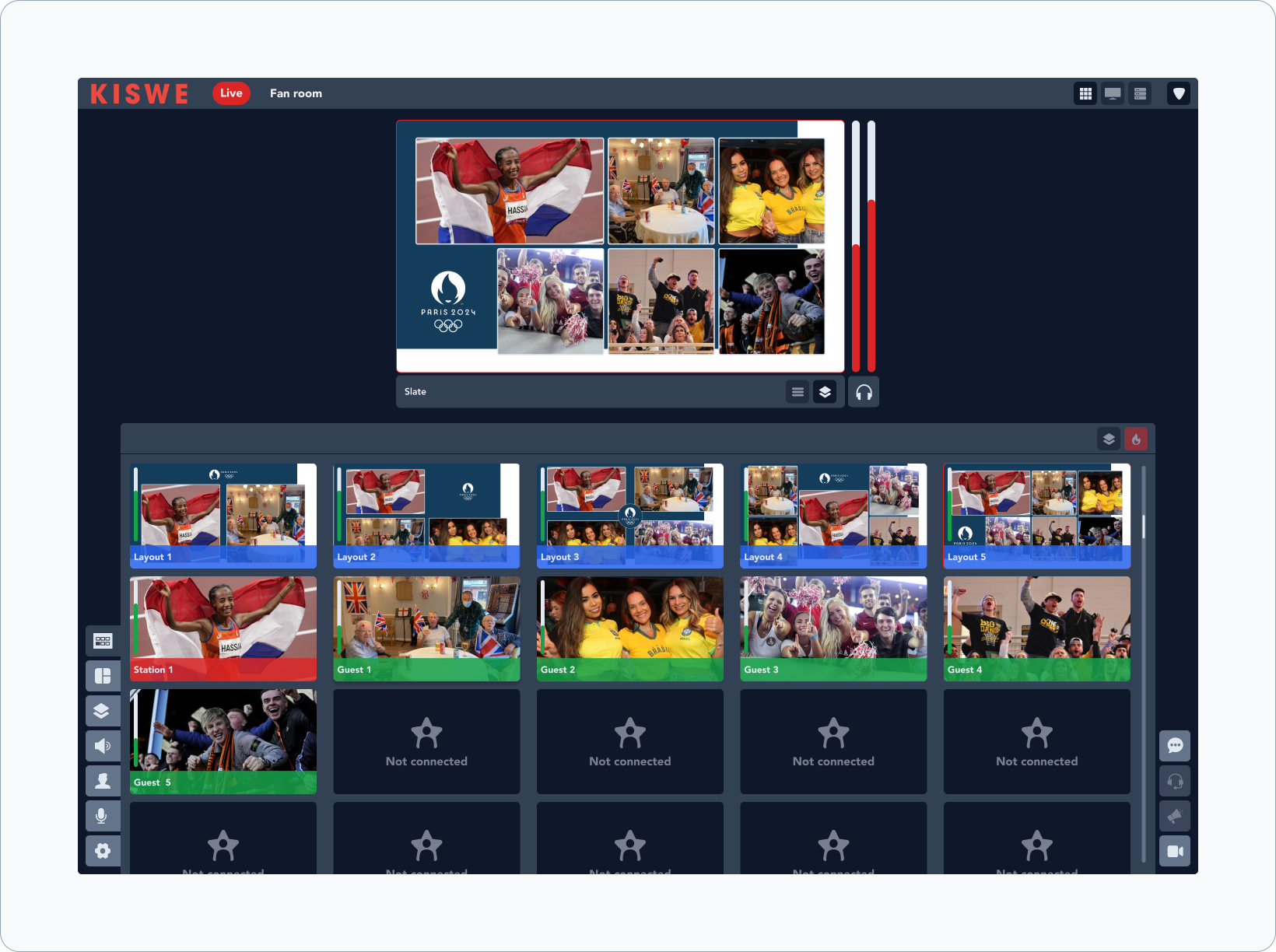

Elements of the station room and the options
-
Station: the direct preview of the station
- Graph: diagnostics of the station stream
- Change: use the backup stream
- Guests: boxes for anonymous guests. We have more than 5 boxes, but the first 5 will be added in the layout.
- Layouts: different layouts for the different number of guests
Scene panel
You can edit the fan rooms from the station room.

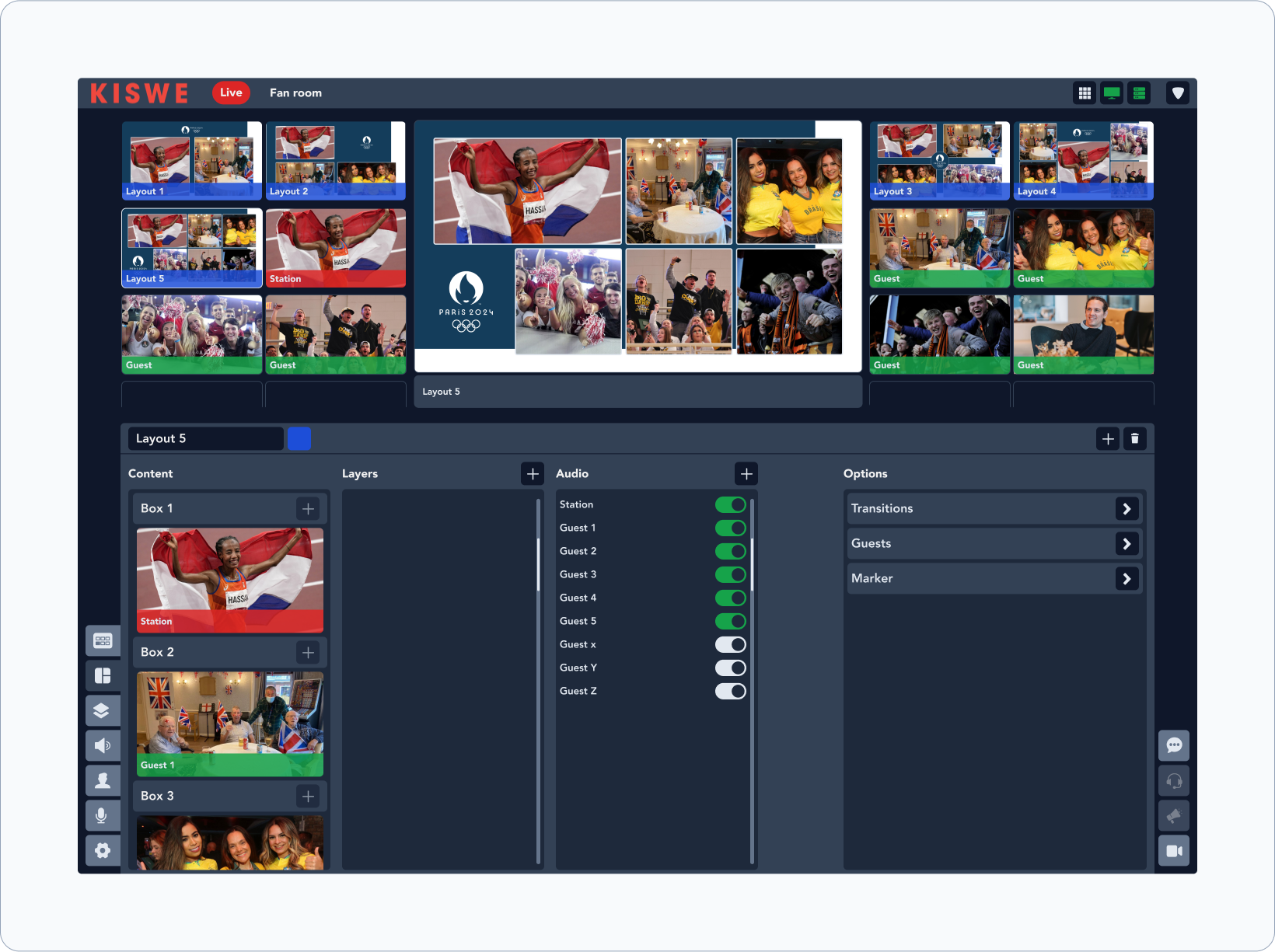

- Layouts: Only the station need to be allocated to the correct box for each layout, the guests will be filled up automatically

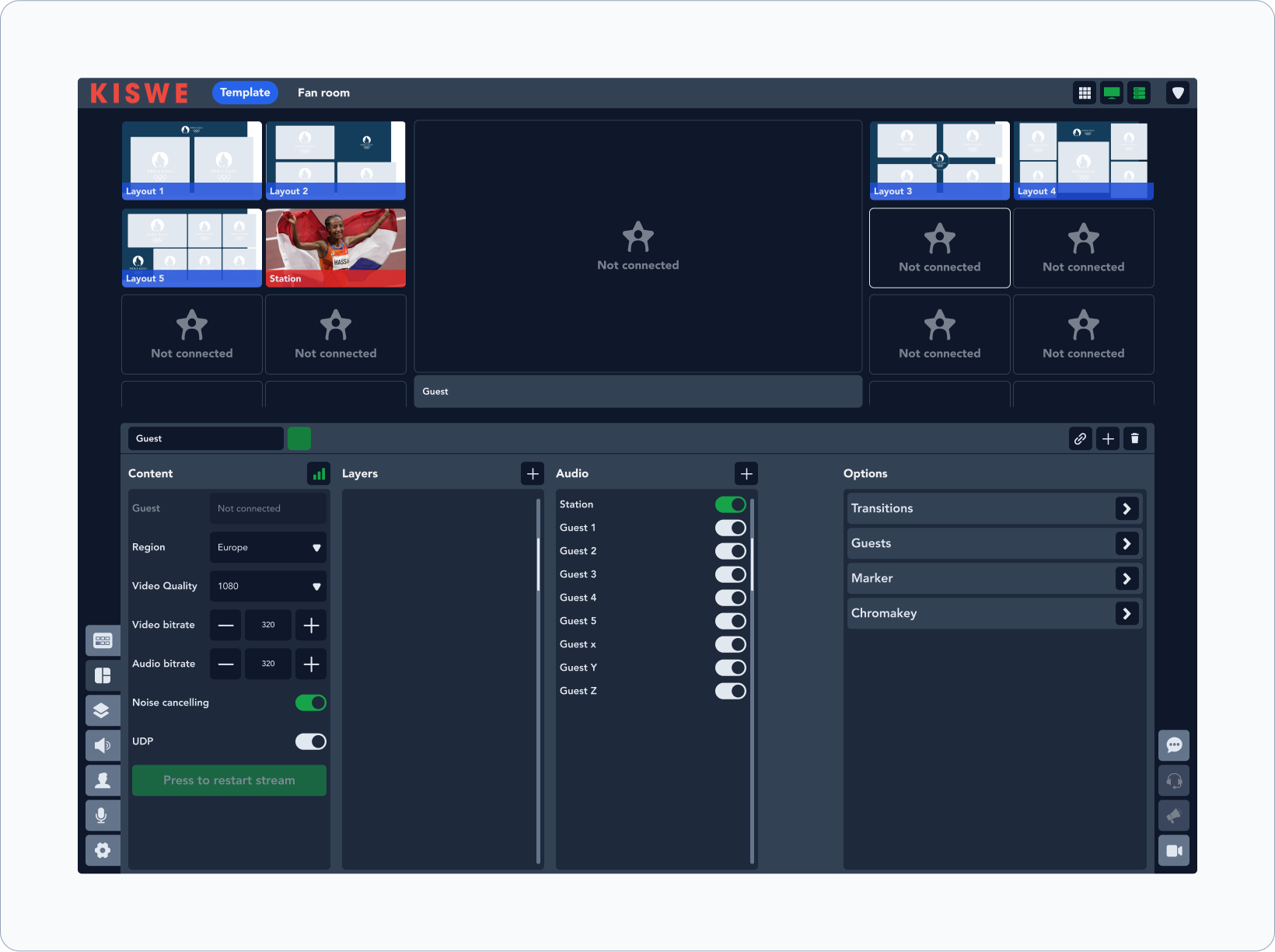

- Guests: Guest links are available. It's 1 link per room

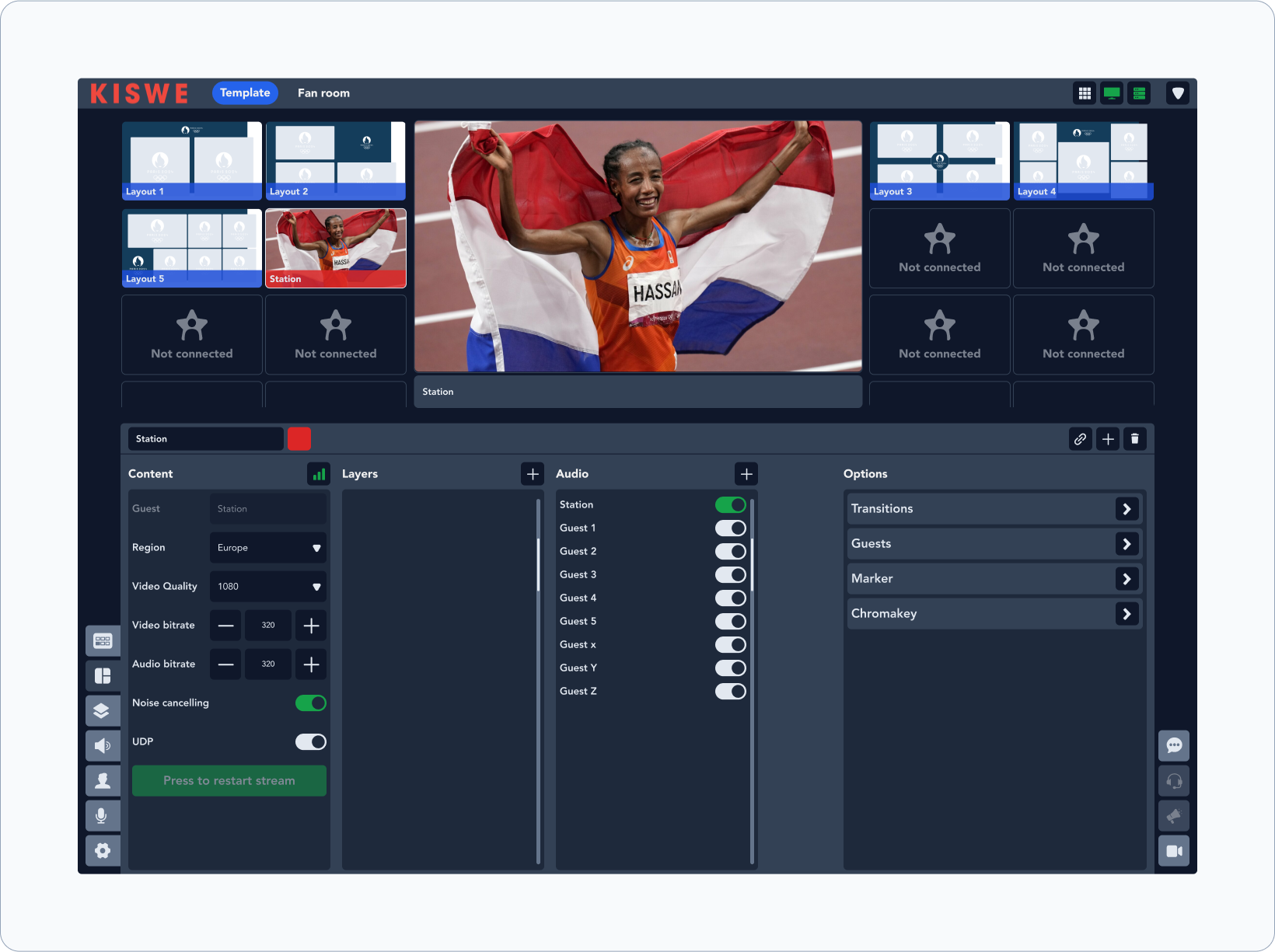

- Station: add the station, this is the same as a regular guest, but we added it as different category to make it easy to find back.
Key panel
Not needed
Audio panel
Master the audio volumes of the guests & station
Crew panel
Not needed, since no one will be in this room
Commentator panel
Not needed
Settings panel
- Ouput: no need to assign an output
- Automation
-
Switch layouts: ON
- Will switch automatically to different layout if guest sign up
- Assign the correct layout per amount of guests
-
Select guests: ON
- It will automatically assign guests to the empty boxes in the layout
- When over 5 guests, and a guests drops, guest number 6 will be added
-
Guest approval: OFF
- Guests need to be moderated, so not automatically added
-
Switch layouts: ON
