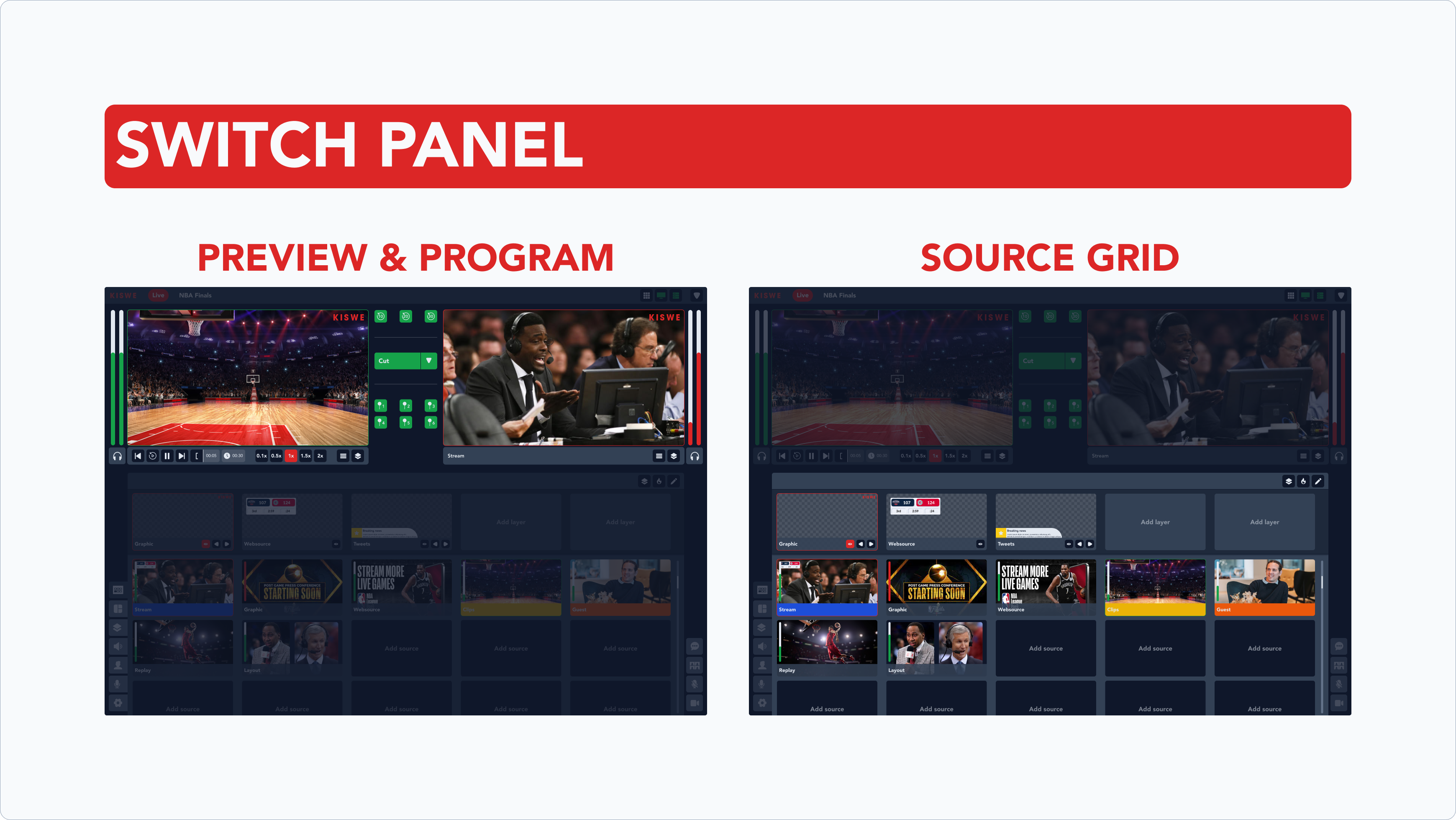

On top you have the preview and the program view with the action bars, under this you find the source grid with all added streams, media, clips and layers.

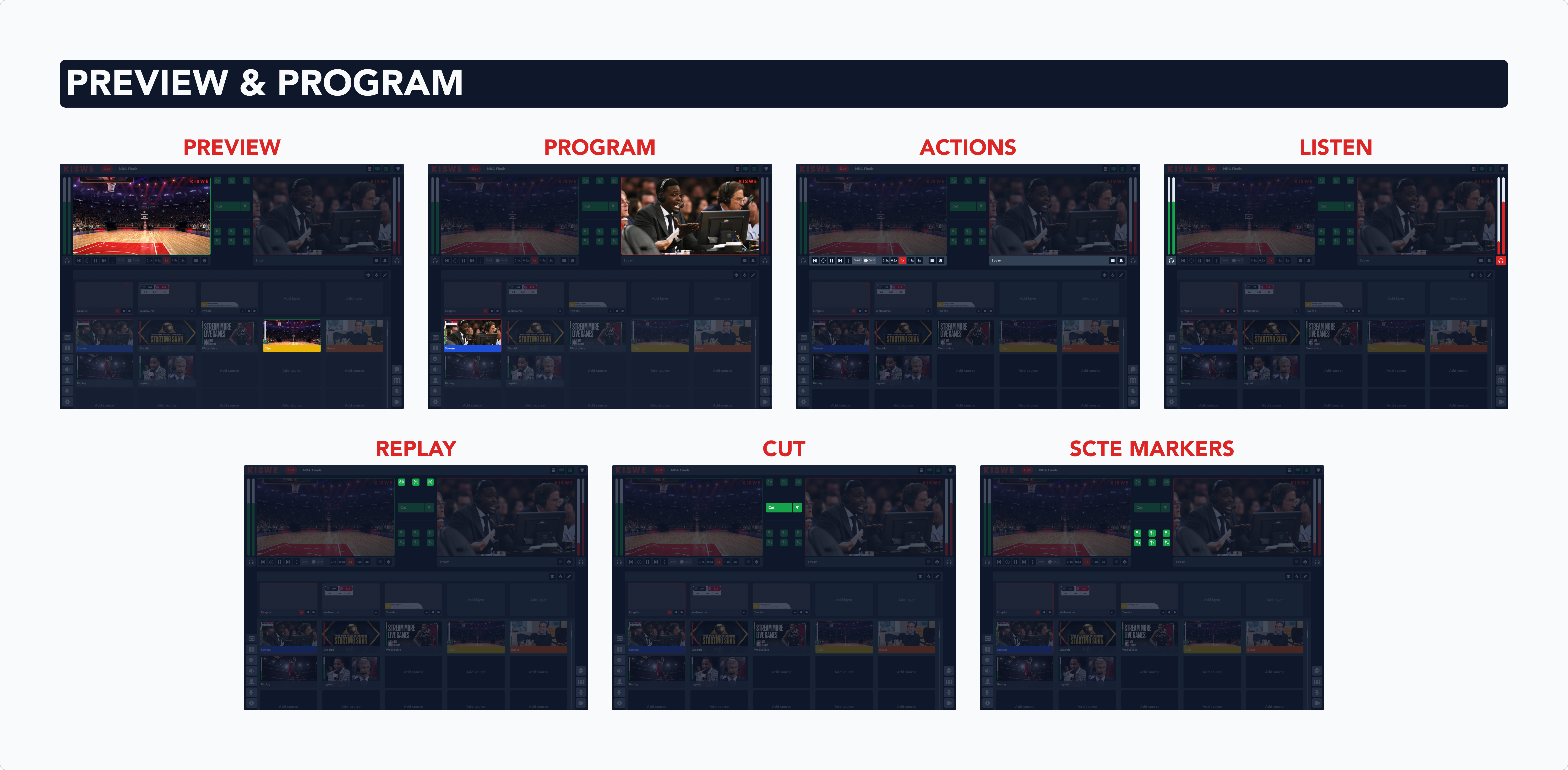

Preview and program area

1. Preview: scene / source in preview, to be put in program with a cut

2. Program: output that is shown to the audience

3. Actions: per source type there are different actions possible

4. Listen: listen to the audio mix of the preview or the program

5. Replay: create instant replays of multiple sources

6. Cut: switches the content from the preview window to the program window

7. Ad Markers: ingest custom ad markers (SCTE - SMPTE)

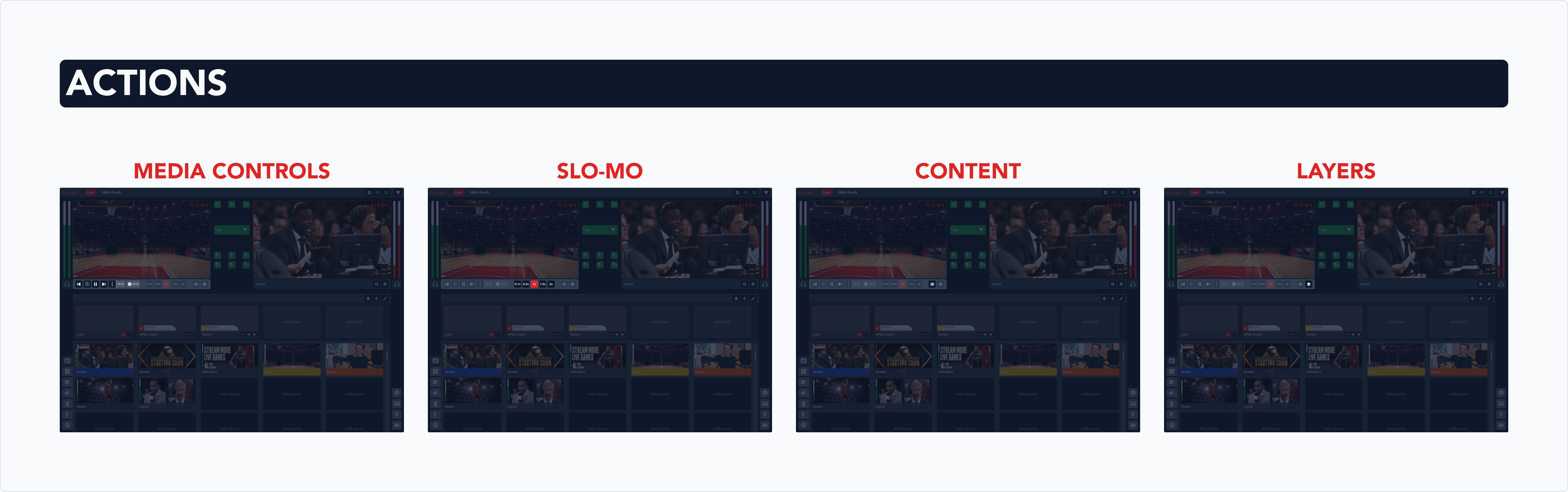

Actions

1. Media actions: play, pause, restart, previous and next clip or media file
2. Slo-mo: speed up or slow down the (replay) clips
3. Content: open a popup to show and select all assets
4. Layer: opens popup to show & select all layers

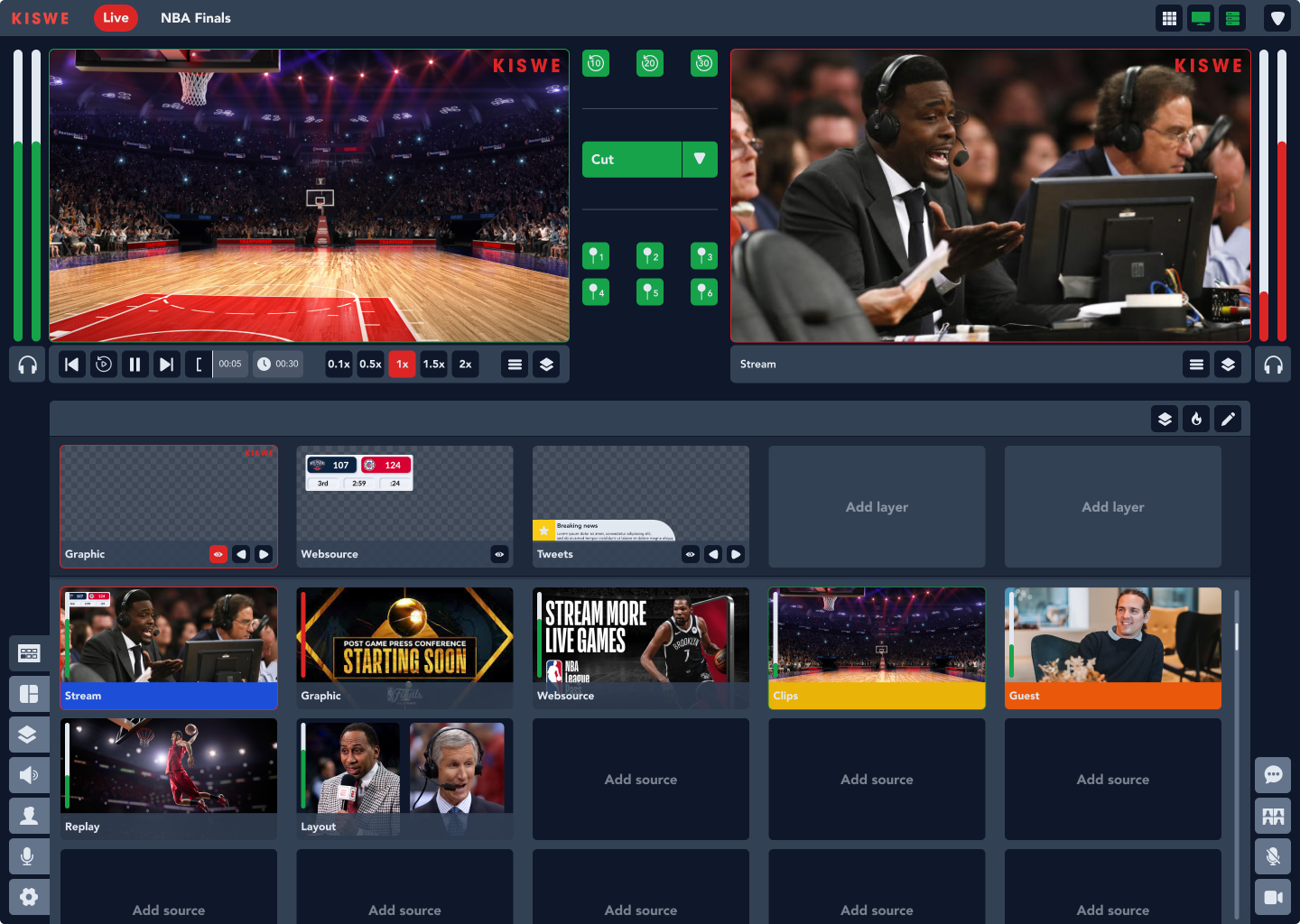

Source grid

Add layers, audio streams, and transition effects to your scenes. An overview of the sources that you can add is available here. When you select one of the added sources or want to edit the scene, a preview will appear.

Source Menu

• Keys: Open/close the global layers (keys) and activate them in the output
• Hot switch: Directly push scenes into program, the preview will disappear
• Re-order: Drag & drop to re-order the boxes in the grid

Keys

• 3 types of keys can be added
  • Graphics - Multiple assets
  • Web source (html5 url) - 1 single URL
  • Tweets - multiple tweets & hashtags

• Activate the keys in the program/output by clicking on the eye

• If multiple assets in the layers, you can go to the next or previous asset

• To hide global layers, click the eye icon in the panel's menu bar.

• Edit keys on the Key panel

Sources

• Click on the empty boxes to add content and select which type
• Edit the scenes, make macros of them on the scene panel
• Combine sources into specific layouts
